Multi-Target Image Transmission Data Link System
Product profile and purpose
This image transmission data link system includes mobile terminal and fixed terminal. It is used to establish wireless link between the mobile equipment and the fixed equipment, and make real-time display of the dual-channel image on display screen of the fixed terminal.

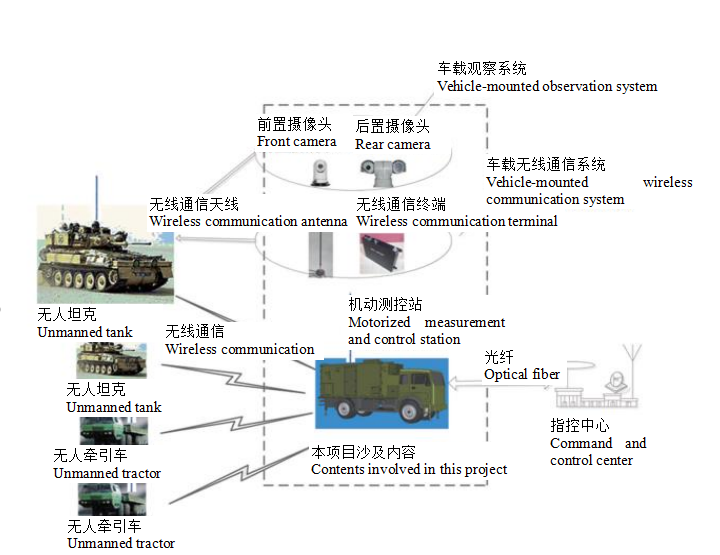

System composition
Main characteristics
Its transmission distance is up to above 20KM, with low image delay, and it is applicable to the test range, emergency rescue, and real-time monitoring.
Technical indicators
Number of targets | No less than 4 targets, and single target can have access to 2-channel image information |
Image resolution | 720P |
Image transmission delay | ≤ 150ms |
Transmission distance | ≥ 20km (ground-to-ground transmission) |
Image compression | H.264 |
Operating temperature | -40℃ ~ +55℃ |
Storage temperature | -55℃ ~ +70℃ |
It supports multi-target networking, and automatic access / can configure the network parameters flexibly | |
Vehicle-mounted mobile image transmitter equipment | Vehicle-mounted base-station image receiver equipment | ||
Operating frequency range | 300MHz~700MHz, 1.0GHz~1.5GHz | Video output interface | SDI, HDMI |
Transmit power | 5W | Output interface | Ethernet interface |
Power supply | Vehicle-mounted 24V power supply | Operating frequency range | 300MHz~700MHz, 1.0GHz~1.5G Hz |
Weight | ≤ 2.5 kg | Equipment weight | ≤ 5 kg |
Built-in digital ABS encryption function | Power supply | Vehicle-mounted 24 V power supply | |
