Image Matching Calibration System
Product profile and purpose
By dual-camera imaging and image matching algorithm, it can accurately measure the error between the measured object and the reference, and realize spatial non-contact measurement and calibration. It can be used for axis system calibration of armed aircraft (helicopter) and so on.

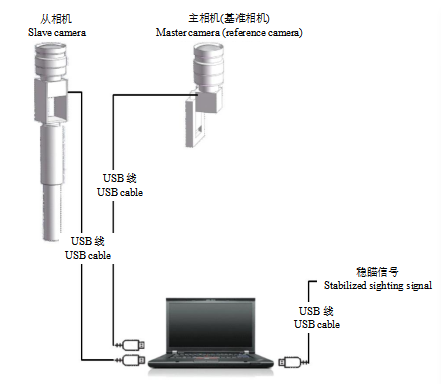

System example
Main technical parameters
Error | < 160″ |
Image frame rate | ≮ 10 frame / second |
Camera resolution | 2560×2048 |
Target distance | 1 km ~ 2km |
Focal length of lens | 180mm/200mm |
Applicable temperature | -40 ~ +55℃ |
主要特点
● Small volume, light weight, and high accuracy;
● It is easy to use and can realize in situ measurement.

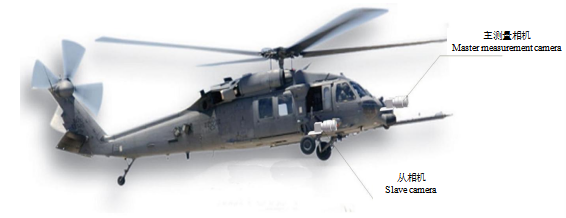

Master and Slave Cameras
