Axis Calibration System for Space Measurement
Product profile and purpose
It adopts laser beam to lead datum of the measured object to the optical measurement equipment, and detects the spatial position deviation of the measured object by optical imaging and measurement, thus realizing calibration of the spatial axis system. It can be used for axis system calibration of armed aircraft (helicopter) and so on.

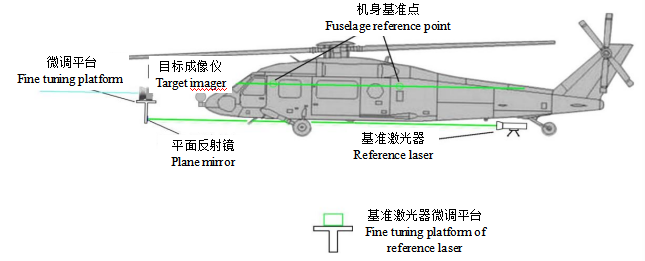

Application diagram of axis calibration system for space measurement
Main technical parameters
System measurement error | ≤ 185″ |
Measurement accuracy | ≤ 47″ |
Aperture of lens | Φ70mm |
Wave length of laser | 532nm |
Weight | ≤ 55 kg (package included) |
Operating temperature | -20℃ ~+55℃ |
Main characteristics
● It is of simple structure and is easy to use;
● It is of low cost and high efficiency, and can realize in situ measurement.
Physical product
